Digital Pressure Gauge (DPG) with Analog Output and Optional Wireless Transmitter

Digital Pressure Gauge (DPG) with Analog Output and Optional Wireless Transmitter

  • NEW RANGES! Sealed Gage, Compound Gage, Vacuum and, Barometric Ranges
  • 5-Point NIST Traceable Calibration Included
  • High 0.08% Accuracy on most Ranges
  • Selectable 4 to 20 mA, 0 to 5V or 0 to 10V Analog Output
  • Large Backlit Display with 25 mm (1″) Digits
  • 6 Selectable Pressure Units
  • High and Low Open Collector Alarms
  • Min/Max/Avg Reading Selectable
  • Free Downloadable Software with USB Connection Included
  • All Stainless Steel Wetted Parts
  • Optional Wireless Transmitter Available
  • Tested to Industrial CE Specifications
  • Long Battery Life
  • NEMA 4X / IP65 Enclosure

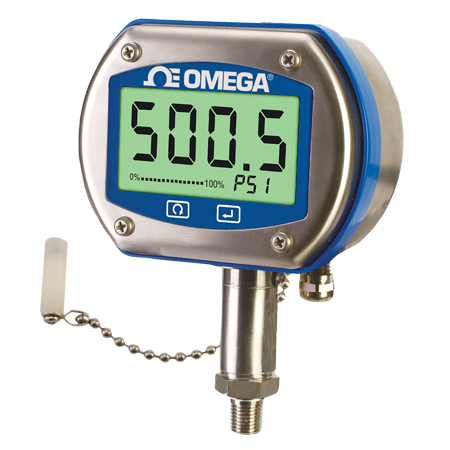

OMEGA’s DPG409 Series incorporates a rugged 316 Stainless Steel enclosure that is designed specifically for wash-down, sanitary, and marine applications. The large backlit LCD display features 1″ high digits that make reading at distances up to 10.7 m (35′) easy. DPG models are available with integral standard or sanitary pressure sensors that incorporate highly-stable silicon wafer technology which is micro-machined to precision tolerances and then has strain gages molecularly embedded. Standard features include: internal battery or external DC power supply operation, analog output, and user programmable alarms. The wireless transmitter option allows for remote monitoring, chart recording and data logging. A variety of user-configurable options and settings include: update rate, dampening, units, backlight, and auto-off.
Free Software includes Set-up and Configuration via USB connection and Charting and Data logging Software plus drivers for popular laboratory programs.
