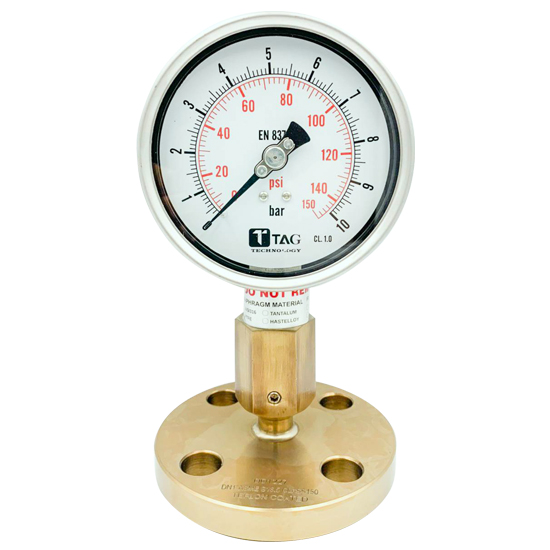

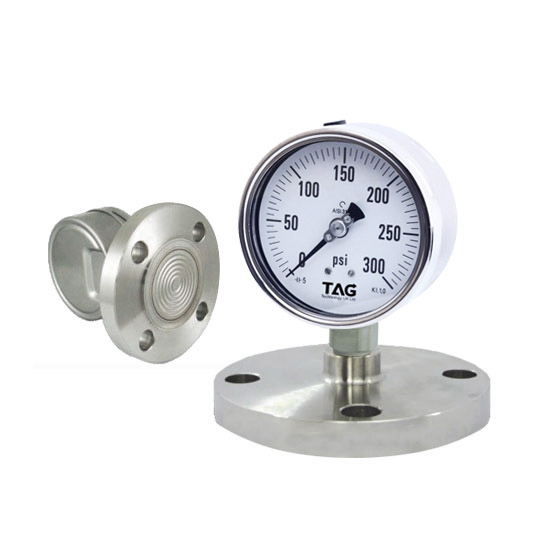

DS5 SERIES:Flanged End Flush Diaphragm Seal

TAG Technology

over view :

  • Flanged end diaphragm seal
  • Double laser welding diaphragm
  • Wide ranges corrosive application
  • Flange end to DIN 2501, ANSI B1.2
  • Diaphragm SS316L, Titanium, Tantalum.. etc
  • Option diaphragm PTFE coating, lining.. etc
  • Viton seal ring, other material available
  • Media temp. -30℃..+240℃ depend on filling Accessories capillary, cooling tower.. etc
  • Pressure range -1..0, -1..+24 to 0..400 bar

DS5 SERIES:Flanged End Flush Diaphragm Seal

over view :

  • Flanged end diaphragm seal
  • Double laser welding diaphragm
  • Wide ranges corrosive application
  • Flange end to DIN 2501, ANSI B1.2
  • Diaphragm SS316L, Titanium, Tantalum.. etc
  • Option diaphragm PTFE coating, lining.. etc
  • Viton seal ring, other material available
  • Media temp. -30℃..+240℃ depend on filling Accessories capillary, cooling tower.. etc
  • Pressure range -1..0, -1..+24 to 0..400 bar
