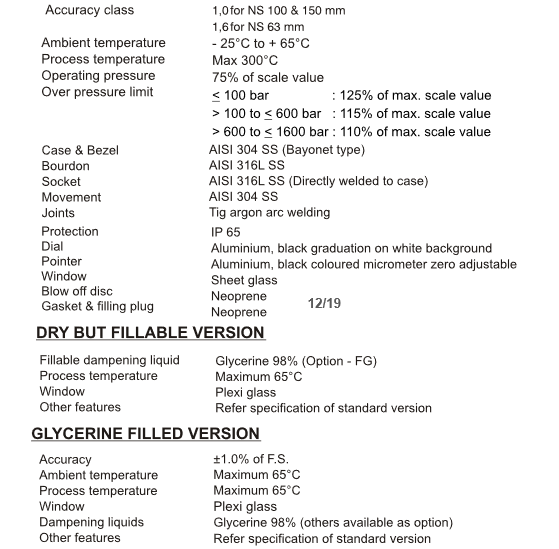

STANDARD VERSION Nominal Size: 63mm, 100mm, 150mm
Applications
Food and Beverage, Pharmaceutical, Cryogenics, Chemical and Petrochemical Industries, Conventional and Nuclear Power Plants, Pumps, Hydro-cleaning machines, Presses, Engine Compressors, Turbines, Diesel Engines and Refrigerating Plants. Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system.
| BRANDS |
|---|
General features
The pressure gauge model MBS10B was designed as an addition to DMASS’s standard range of products in order to meet the special demands made on process connections in the food, biological and pharmaceutical industry as well as in the paint and lacquer sector.
All wetted parts are made of stainless steel and fully welded. Due to the special design of the gauge it is possible to use an absolutely dry measuring cell, thus excluding a contamination of the medium with transmission liquids that may occur on diaphragm seal systems in the case of a damage to the diaphragm
