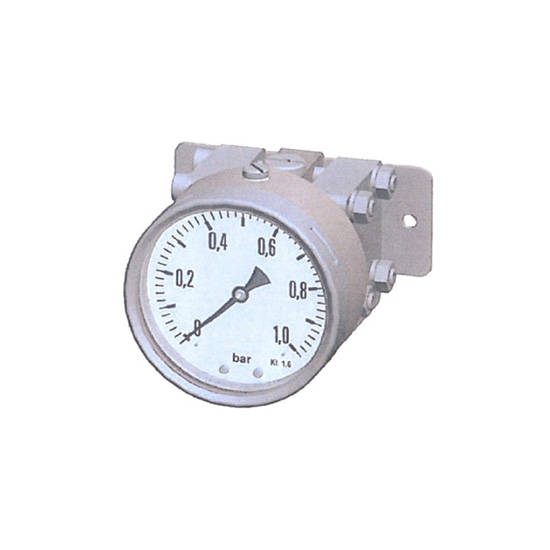

Differential Pressure Gauges : Model DiP3Ch, DiP3ChG

Bayonet Ring Case Stainless SteelStandard (DiP1Ch) or Liquid Filled (DiP1ChG)

Application:

The  differential  pressure  gauges  models  DiP1Ch  and  DiP1ChG are used for direct indication of low differential pressure from 0-40 mbar and above at static pressure of 40 bar (600 psi) or optionally 100 bar (1500 psi).

They may be used for measuring fluid or gaseous media, which are compatible with stainless steel 316 Ti, 316 L and Viton. The measuring chambers are flushable, therefore they are insensitive to  the  accumulation  of  solid  particles.  2x  flush  and  ventilation connections 1/8″ BSP female are standard supply.

Different electrical accessories can be installed, such as limit-switch contact assemblies and capacitive electrical transformers.
