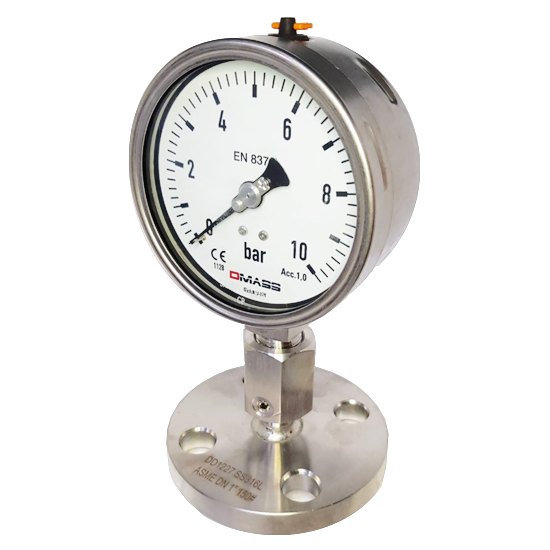

Flange Connection, Diaphragm Seals With Flush Diaphragm Model DD1227

DMASS

Applications

  • Chemical process industry
  • Petrochemical industry
  • For aggressive, highly viscous, crystallising or hot media

Special Features

  • Flange with a flush welded diaphragm with diaphragm bed
  • Available for all common standards and nominal diameters
  • With special material, all wetted parts are of the selected materi

Flange Connection, Diaphragm Seals
With Flush Diaphragm
Model DD122

Description
Process connection
Flanges DN 25, 40, 50, 80, 100, 125 following EN 1092-1,
sealing face form B1
or DN 1, 1½, 2, 3, 4, 5 per ASME B 16.5,
RF 125 … 250 AA

Pressure ranges
25 mbar and up, depending on diaphragm diameter and
process conditions with transmitter

Material of wetted parts
Stainless steel 316

Measuring instrument connection
Material stainless steel 316, axial weld-in connection or capillary with adapter G ½ per EN 837-1
