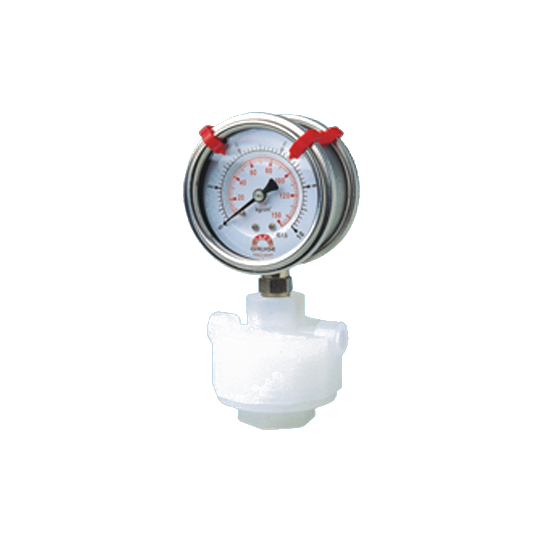

Double-Side PP Diaphragm Pressure Gauge GA-AE
Diameter : 2.5”,4”
Pressure Range : 5psi ~ 700psi
0.35kg/cm2 ~ 50kg/cm2
Casing & Bezel : SUS 304 or EPDM Surface, anti-shock PP, PVDF
Connection : 1/8″,1/4″,3/8″,1/2″,PT,NPT,BSPT,PF
Filling : 99.5% Glycerin or 1000# silicone oil
Diaphragm : PP or TEFLON or PVDF
Capsule : VITON or TEFLON
Accuracy : +/- 1.5% F.S.D
Temperature Range : – 10℃ to +85℃ (PP)
