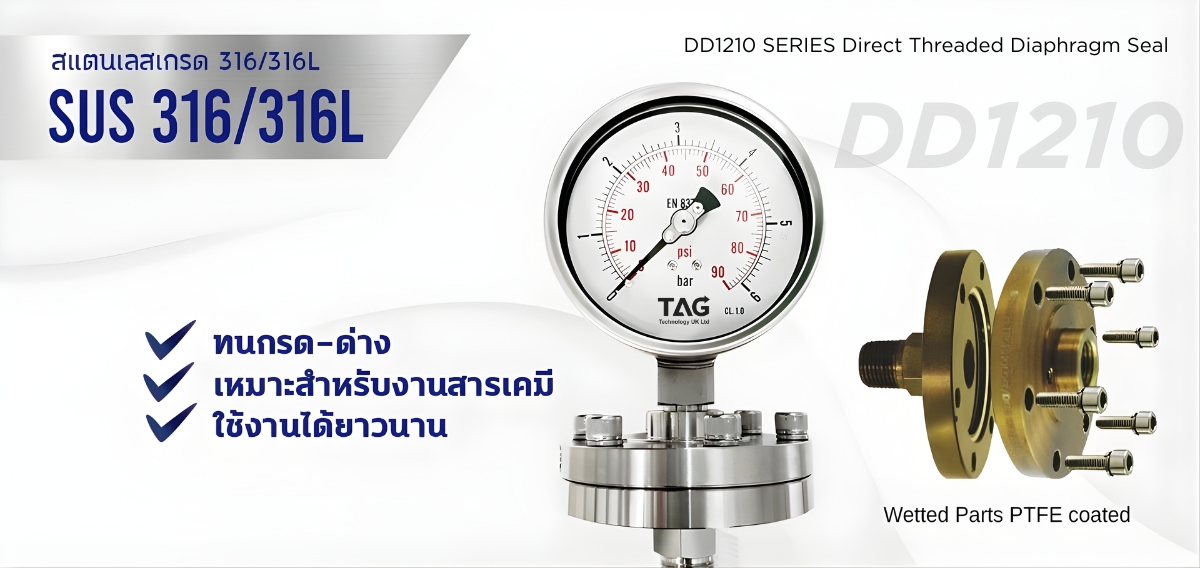

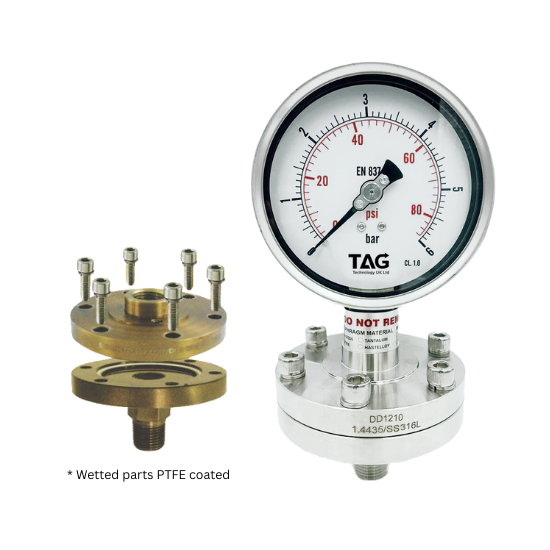

TAG DD1210 SERIES : Direct Threaded Diaphragm Seal
- Direct threaded processing type
- Applicable with most measuring instruments
- Double laser welding diaphragm design
- Wide range corrosive applications
- Stainless steel wetted parts with options
- Various diaphragm materials selection
- Diaphragm or wetted parts coating or lining
- Pressure range -1..0,-1..+24 to 0..60 bar (kg/cm2)
- Various liquid filling supported
Technical Specification
- Model and pressure configuration
Pressure : 0..1 bar to 60 bar (kg/cm2)
Vacuum : -1..0 bar
Compound : -1..24 bar - Instrument / Process Connection Size
G ½ or NPT, other connection size available - Working temperature range
Working temperature -40°..+150℃
Please refer to filling selection table - Optional Accessories
Stainless steel armoured capillary, max.15m
Cooling tower C1..C3(T＞100℃)
Material
- The upper part and the lower part: SS 316(Standard) or *SS316L
- Diaphragm: SS 316L(Standard),*Optional Titanium, Monel,Hastelloy,Tantalm, or others
- Sealing ring / gasket : PTFE / Viton seal *Optional Nitrile, Rubber,Fluoroplastic
- Fastening screw SS 304
- Diaphragm filling: Standard silicone oil
