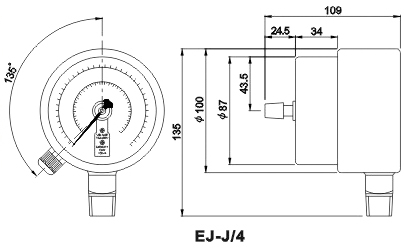

Electric Contactor Pressure Gauge Model : EJ-J

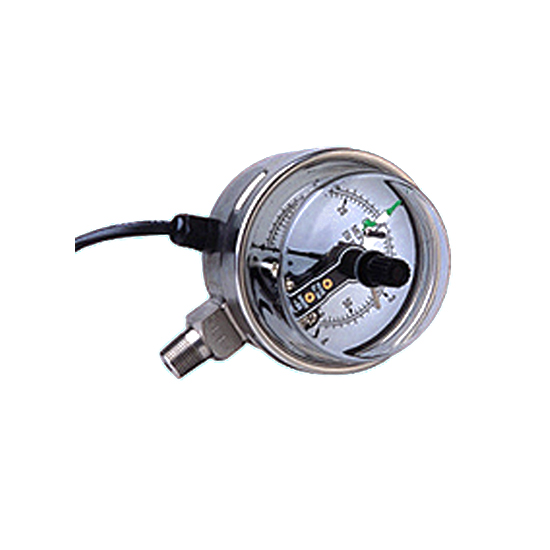

Compound Gauge with Electrical Connection (EJ-J)

Specifications:

•   Diameter : 3″, 4″
•   Pressure range :
  -30inHg ~ 0 ~ 15,000psi
  -76cmHg ~ 0 ~ 1,000kg/cm²
•   Casing & bezel : Steel, chrome plating (polished finish), SUS 304
•   Bourdon tube : Brass or 316L stainless steel
•   Connection : 1/4″, 3/8″, 1/2″PT, NPT, PF
•   Accuracy :
  +/-1.0% F.S.D
  +/-1.5% F.S.D
•  Temperature range :  -20°C to +200°C
