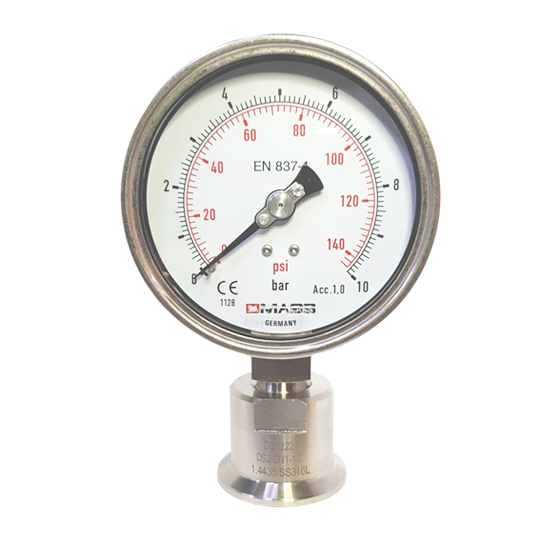

Flush Diaphragm Pressure Gauges for food. Model MBS-DD1222

Flush Diaphragm Pressure Gauges for food. Model MBS-DD1222

General features

The pressure gauge model MBS10B was designed as an addition to DMASS’s standard range of products in order to meet the special demands made on process connections in the food, biological and pharmaceutical industry as well as in the paint and  lacquer sector.
All wetted parts are made of stainless steel and fully welded. Due to the special design of the gauge it is possible to use an absolutely dry measuring cell, thus excluding a contamination of the medium with transmission liquids that may occur on diaphragm seal systems in the case of a damage to the diaphragm

Flush Diaphragm Pressure Gauges for Food ,
Biological and Pharmaceutical Industry
Model MBS10B+DD1222


  • Dry measuring cell, no transmission liquid
  • Wetted parts and covering metallic components made of stainless steel
  • Hygienic-type connection for direct, fast installation and removal
  • Suitable for CIP-facilities
  • Scale ranges from 0 …0.6 bar to -1 …16 bar
