DS8 SERIES is a premium mini size diaphragm seal designed for corrosive, friendly-use and limitation space installation. Design with various selection of diaphragm materials, such as Hastelloy, Monel, Tantalum, Titanium etc., suitable for chemical plants, process industries, sewage, mining, water treatment and other extreme corrosive environment.
DIAPHRAGM PRESSURE GAUGE

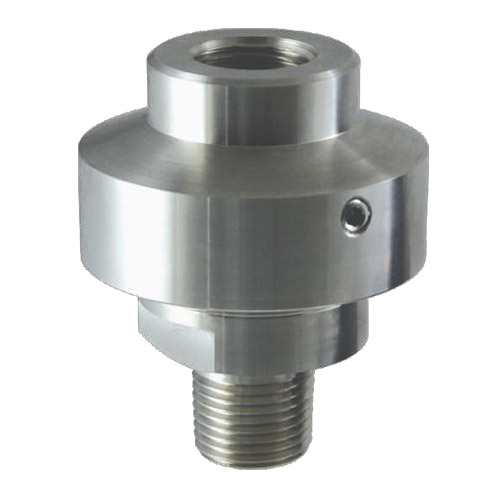

DS8 THREADED MINI DIAPHRAGM SEAL
- Mini design body diaphragm seal
- Direct threaded processing type
- Pressure range 0.. 10 bar to 60 bar
- Welded body full stainless steel with integral diaphragm
- Corrosive and limit space application
- Process connection G1/2″ or NPT standard
- Media temperature -10°.. +150°C
- Special diaphragm material available
- Applicable on accessories, eg. capillary, siphon, etc.
