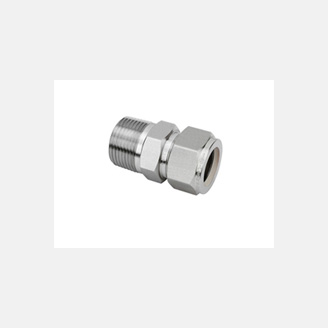

Fractional Tube—ISO Parallel Thread(RP)
Series: Tube Fitting-Straight Male Connectors-
Model: Fractional Tube—ISO Parallel Thread(RP)

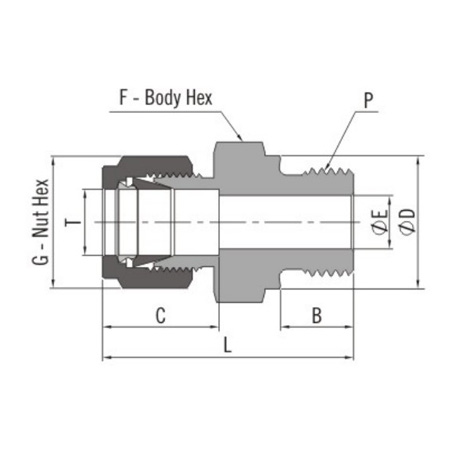

| T-Tube 0.D.(in.) | Basic_Ordering Number | DIM mm L | DIM mm B | DIM mm C | DIM mm E | DIM mm G | DIM mm F | Inter-changes with | DIM mm D | P-RP Size(in.) |
| 1/8 | 1/8 | -CM-S2-RP2 | 33.3 | 7.1 | 12.7 | 2.3 | 11.1 | 14.3 | 13.7 | -200-1-2RP |
| 1/8 | 1/4 | -CM-S2-RP4 | 38.1 | 11.2 | 12.7 | 2.3 | 11.1 | 19.1 | 17.8 | -200-1-4RP |
| 1/4 | 1/8 | -CM-S4-RP2 | 35.6 | 7.1 | 15.2 | 4.1 | 14.3 | 14.3 | 13.8 | -400-1-2RP |
| 1/4 | 1/4 | -CM-S4-RP4 | 40.4 | 11.2 | 15.2 | 4.8 | 14.3 | 19.1 | 18.0 | -400-1-4RP |
| 1/2 | 3/8 | -CM-S8-RP6 | 45.5 | 11.2 | 22.9 | 7.9 | 22.2 | 22.2 | 21.8 | -810-1-6RP |
| 1/2 | 1/2 | -CM-S8-RP8 | 47.5 | 14.2 | 22.9 | 10.4 | 22.2 | 27.0 | 25.9 | -810-1-8RP |
| 3/4 | 1/2 | -CM-S12-RP8 | 49.0 | 14.2 | 24.4 | 11.9 | 28.6 | 27.0 | 25.9 | -1210-1-8RP |
| 3/4 | 3/4 | -CM-S12-RP12 | 52.9 | 15.7 | 24.4 | 15.7 | 28.6 | 34.9 | 32.0 | -1210-1-12RP |
| 1 | 1 | -CM-S16-RP16 | 59.7 | 18.3 | 31.2 | 19.8 | 38.1 | 41.3 | 39.1 | -1610-1-16RP |
| brands | Fd-Lok |
|---|
