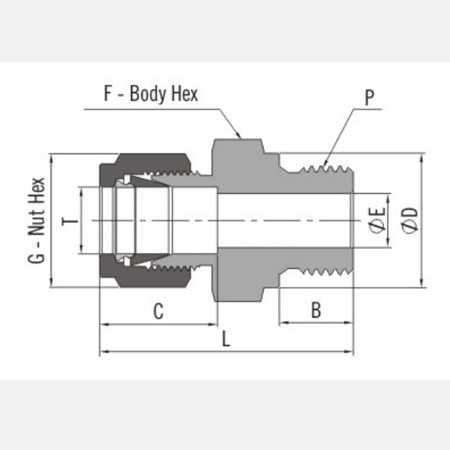

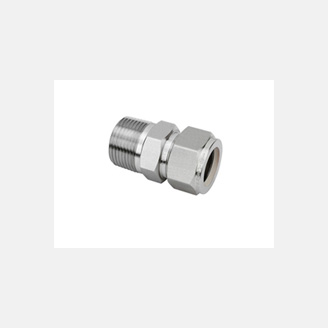

Fractional Tube—ISO Parallel Thread (RS)
| T-Tube 0.D.(in.) | Basic_Ordering Number | DIM mm L | DIM mm B | DIM mm C | DIM mm E | DIM mm G | DIM mm F | Inter-changes with | P-RS Size | DIM mm D |
| 1/8 | 1/8 | -CM-S2-RS2 | 30 | 7.1 | 12.7 | 2.3 | 11.1 | 14.3 | 13.7 | -200-1-2RS |
| 1/8 | 1/4 | -CM-S2-RS4 | 38.1 | 11.2 | 12.7 | 2.3 | 11.1 | 19.1 | 18.0 | -200-1-2RS |
| 1/8 | 3/8 | -CM-S2-RS6 | 38.9 | 11.2 | 12.7 | 2.3 | 11.1 | 22.2 | 21.8 | -200-1-2RS |
| 1/4 | 1/8 | -CM-S4-RS2 | 35.6 | 7.1 | 15.2 | 4.0 | 14.3 | 14.3 | 13.7 | -400-1-2RS |
| 1/4 | 1/4 | -CM-S4-RS4 | 40.0 | 11.2 | 15.2 | 4.8 | 14.3 | 19.1 | 18.0 | -400-1-2RS |
| 1/4 | 3/8 | -CM-S4-RS6 | 41.0 | 11.2 | 15.2 | 4.8 | 14.3 | 22.2 | 21.8 | -400-1-2RS |
| 1/4 | 1/2 | -CM-S4-RS8 | 43.2 | 14.2 | 15.2 | 4.8 | 14.3 | 27.0 | 25.9 | -400-1-2RS |
| 3/8 | 1/8 | -CM-S6-RS2 | 37.8 | 7.1 | 16.8 | 4.0 | 17.5 | 15.9 | 13.7 | -600-1-2RS |
| 3/8 | 1/4 | -CM-S6-RS4 | 41.9 | 11.2 | 16.8 | 5.9 | 17.5 | 19.1 | 18.0 | -600-1-2RS |
| 3/8 | 3/8 | -CM-S6-RS6 | 42.7 | 11.2 | 16.8 | 7.1 | 17.5 | 22.2 | 21.8 | -600-1-2RS |
| 3/8 | 1/2 | -CM-S6-RS8 | 44.7 | 14.2 | 16.8 | 7.1 | 17.5 | 27.0 | 25.9 | -600-1-2RS |
| 1/2 | 1/4 | -CM-S8-RS4 | 42.7 | 11.2 | 22.9 | 5.9 | 22.2 | 20.6 | 18.0 | -810-1-2RS |
| 1/2 | 3/8 | -CM-S8-RS6 | 43.2 | 11.2 | 22.9 | 7.9 | 22.2 | 22.2 | 21.8 | -810-1-2RS |
| 1/2 | 1/2 | -CM-S8-RS8 | 47.5 | 14.2 | 22.9 | 10.4 | 22.2 | 27.0 | 25.9 | -810-1-2RS |
| 3/4 | 1/2 | -CM-S12-RS8 | 48.8 | 14.2 | 24.4 | 11.9 | 28.6 | 27.0 | 25.9 | -1210-1-2RS |
| 3/4 | 3/4 | -CM-S12-RS12 | 52.1 | 15.7 | 24.4 | 15.7 | 28.6 | 34.9 | 32.0 | -1210-1-2RS |
| 1 | 1/2 | -CM-S16-RS8 | 55.5 | 14.2 | 31.2 | 11.9 | 38.1 | 34.9 | 25.9 | -1610-1-2RS |
| 1 | 3/4 | -CM-S16-RS12 | 57.7 | 15.7 | 31.2 | 16.0 | 38.1 | 34.9 | 32.0 | -1610-1-2RS |
| 1 | 1 | -CM-S16-RS16 | 59.7 | 18.3 | 31.2 | 19.8 | 38.1 | 41.3 | 39.1 | -1610-1-2RS |
| brands | Fd-Lok |
|---|
