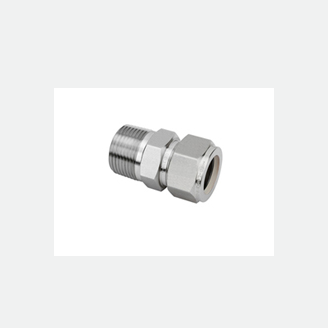

Fractional Tube—NPT Thread
Series: Tube Fitting-Straight Male Connectors
Model: Fractional Tube—NPT Thread

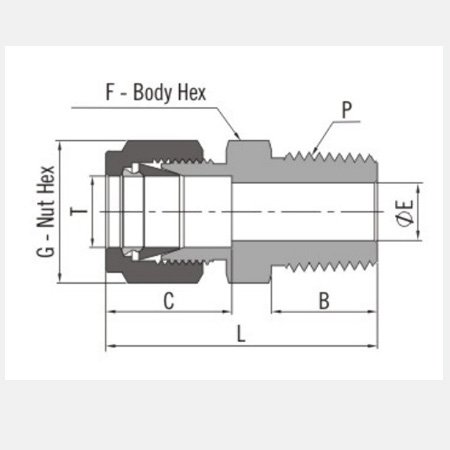

| T-Tube 0.D.(in.) | P-NPT Size | Basic_Ordering Number | DIM mm L | DIM mm B | DIM mm C | DIM mm E | DIM mm G | DIM mm F | Inter-changes with |
| 1/16 | 1/16 | -CM-S1-NT1 | 23.9 | 9.7 | 8.6 | 1.3 | 7.9 | 7.9 | -100-1-1 |
| 1/16 | 1/8 | -CM-S1-NT2 | 26.2 | 9.7 | 8.6 | 1.3 | 7.9 | 11.1 | -100-1-2 |
| 1/16 | 1/4 | -CM-S1-NT4 | 31 | 14.2 | 8.6 | 1.3 | 7.9 | 14.3 | -100-1-4 |
| 1/8 | 1/16 | -CM-S2-NT1 | 29.7 | 9.7 | 12.7 | 2.3 | 11.1 | 11.1 | -200-1-1 |
| 1/8 | 1/8 | -CM-S2-NT2 | 30.5 | 9.7 | 12.7 | 2.3 | 11.1 | 11.1 | -200-1-2 |
| 1/8 | 1/4 | -CM-S2-NT4 | 35.6 | 14.2 | 12.7 | 2.3 | 11.1 | 14.3 | -200-1-4 |
| 1/8 | 3/8 | -CM-S2-NT6 | 35.8 | 14.2 | 12.7 | 2.3 | 11.1 | 17.5 | -200-1-6 |
| 1/8 | 1/2 | -CM-S2-NT8 | 42.2 | 19.1 | 12.7 | 2.3 | 11.1 | 22.2 | -200-1-8 |
| 3/16 | 1/16 | -CM-S3-NT1 | 31.2 | 9.7 | 13.7 | 2.3 | 12.7 | 11.1 | -300-1-1 |
| 3/16 | 1/8 | -CM-S3-NT2 | 31.2 | 9.7 | 13.7 | 3.0 | 12.7 | 11.1 | -300-1-2 |
| 3/16 | 1/4 | -CM-S3-NT4 | 36.3 | 14.2 | 13.7 | 3.0 | 12.7 | 14.3 | -300-1-4 |
| 1/4 | 1/16 | -CM-S4-NT1 | 32.8 | 9.7 | 15.2 | 3.0 | 14.3 | 12.7 | -400-1-1 |
| 1/4 | 1/8 | -CM-S4-NT2 | 32.8 | 9.7 | 15.2 | 4.8 | 14.3 | 12.7 | -400-1-2 |
| 1/4 | 1/4 | -CM-S4-NT4 | 37.8 | 14.2 | 15.2 | 4.8 | 14.3 | 14.3 | -400-1-4 |
| 1/4 | 3/8 | -CM-S4-NT6 | 38.4 | 14.2 | 15.2 | 4.8 | 14.3 | 17.5 | -400-1-6 |
| 1/4 | 1/2 | -CM-S4-NT8 | 44.7 | 19.1 | 15.2 | 4.8 | 14.3 | 22.2 | -400-1-8 |
| 1/4 | 3/4 | -CM-S4-NT12 | 46.2 | 19.1 | 15.2 | 4.8 | 14.3 | 27.0 | -400-1-12 |
| 5/16 | 1/8 | -CM-S5-NT2 | 34.0 | 9.7 | 16.3 | 4.8 | 15.9 | 14.3 | -500-1-2 |
| 5/16 | 1/4 | -CM-S5-NT4 | 38.6 | 9.7 | 16.3 | 6.4 | 15.9 | 14.3 | -500-1-4 |
| 5/16 | 3/8 | -CM-S5-NT6 | 39.1 | 14.2 | 16.3 | 6.4 | 15.9 | 17.5 | -500-1-6 |
| 5/16 | 1/2 | -CM-S5-NT8 | 45.5 | 19.1 | 16.3 | 6.4 | 15.9 | 22.2 | -500-1-8 |
| 3/8 | 1/8 | -CM-S6-NT2 | 35.3 | 9.7 | 16.8 | 4.8 | 17.5 | 15.9 | -600-1-2 |
| 3/8 | 1/4 | -CM-S6-NT4 | 39.9 | 14.2 | 16.8 | 7.1 | 17.5 | 15.9 | -600-1-4 |
| 3/8 | 3/8 | -CM-S6-NT6 | 39.9 | 14.2 | 16.8 | 7.1 | 17.5 | 17.5 | -600-1-6 |
| 3/8 | 1/2 | -CM-S6-NT8 | 46.2 | 19.1 | 16.8 | 7.1 | 17.5 | 22.2 | -600-1-8 |
| 3/8 | 3/4 | -CM-S6-NT12 | 47.8 | 19.1 | 16.8 | 7.1 | 17.5 | 27.0 | -600-1-12 |
| 3/8 | 1 | -CM-S6-NT16 | 47.0 | 23.9 | 16.8 | 7.1 | 17.5 | 34.9 | -600-1-16 |
| 1/2 | 1/8 | -CM-S8-NT2 | 38.9 | 9.7 | 22.9 | 4.8 | 22.2 | 20.6 | -810-1-2 |
| 1/2 | 1/4 | -CM-S8-NT4 | 43.4 | 14.2 | 22.9 | 7.1 | 22.2 | 20.6 | -810-1-4 |
| 1/2 | 3/8 | -CM-S8-NT6 | 43.4 | 14.2 | 22.9 | 9.7 | 22.2 | 20.6 | -810-1-6 |
| 1/2 | 1/2 | -CM-S8-NT8 | 49.0 | 19.1 | 22.9 | 10.4 | 22.2 | 22.2 | -810-1-8 |
| 1/2 | 3/4 | -CM-S8-NT12 | 50.5 | 19.1 | 22.9 | 10.4 | 22.2 | 27.0 | -810-1-12 |
| 1/2 | 1 | -CM-S8-NT16 | 57.2 | 23.9 | 22.9 | 10.4 | 22.2 | 34.9 | -810-1-16 |
| 5/8 | 1/4 | -CM-S10-NT4 | 44.2 | 14.2 | 24.4 | 7.1 | 25.4 | 23.8 | -1010-1-4 |
| 5/8 | 3/8 | -CM-S10-NT6 | 44.2 | 14.2 | 24.4 | 9.7 | 25.4 | 23.8 | -1010-1-6 |
| 5/8 | 1/2 | -CM-S10-NT8 | 49.0 | 19.1 | 24.4 | 11.9 | 25.4 | 23.8 | -1010-1-8 |
| 5/8 | 3/4 | -CM-S10-NT12 | 50.5 | 19.1 | 24.4 | 12.7 | 25.4 | 27.0 | -1010-1-12 |
| 3/4 | 3/8 | -CM-S12-NT6 | 45.7 | 14.2 | 24.4 | 10.4 | 28.6 | 27.0 | -1210-1-6 |
| 3/4 | 1/2 | -CM-S12-NT8 | 50.5 | 19.1 | 24.4 | 11.9 | 28.6 | 27.0 | -1210-1-8 |
| 3/4 | 3/4 | -CM-S12-NT12 | 50.5 | 19.1 | 24.4 | 15.7 | 28.6 | 27.0 | -1210-1-12 |
| 3/4 | 1 | -CM-S12-NT16 | 57.2 | 23.9 | 24.4 | 15.7 | 28.6 | 34.9 | -1210-1-16 |
| 7/8 | 1/2 | -CM-S14-NT8 | 50.5 | 19.1 | 25.9 | 11.9 | 31.8 | 30.2 | -1410-1-8 |
| 7/8 | 3/4 | -CM-S14-NT12 | 50.5 | 19.1 | 25.9 | 15.7 | 31.8 | 30.2 | -1410-1-12 |
| 7/8 | 1 | -CM-S14-NT16 | 57.2 | 23.9 | 25.9 | 18.3 | 31.8 | 34.9 | -1410-1-16 |
| 1 | 1/2 | -CM-S16-NT8 | 57.4 | 19.1 | 31.2 | 11.9 | 38.1 | 34.9 | -1610-1-8 |
| 1 | 3/4 | -CM-S16-NT12 | 57.4 | 19.1 | 31.2 | 15.7 | 38.1 | 34.9 | -1610-1-16 |
| 1 | 1 | -CM-S16-NT16 | 62.2 | 23.9 | 31.2 | 22.4 | 38.1 | 34.9 | -200-1-16 |
| 11/8 | 1 | -CM-S18-NT16 | 62.2 | 23.9 | 31.2 | 22.4 | 46.0 | 41.3 | -1810-1-16 |
| 11/4 | 1 | -CM-S20-NT16 | 77.2 | 23.9 | 41.1 | 22.4 | 47.6 | 44.5 | -2000-1-16 |
| 11/4 | 11/4 | -CM-S20-NT20 | 77.2 | 23.9 | 41.1 | 27.7 | 47.6 | 44.5 | -2000-1-20 |
| 11/2 | 11/2 | -CM-S24-NT24 | 88.9 | 26.2 | 50.0 | 34.0 | 57.2 | 54.0 | -2400-1-24 |
| BRAND | FD-LOK |
|---|---|
| brands | Fd-Lok |
