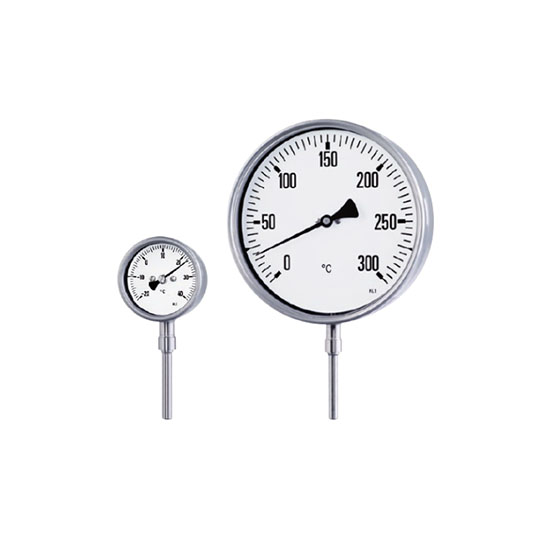

Bimetal Thermometers, Rigid Mount :Model 8101 TBiSCh

Bimetal Thermometers, Rigid Mount :Model 8101 TBiSCh
Bayonet ring case stainless steel

• Measuring Unit
  Helical bimetallic element
• Accuracy (EN 13 190)
  Class 1
• Case
  With bayonet ring, 1.4301 (304 stainless steel)
• Case Protection Type (EN 60 529 / IEC 529)
  IP 65
• Nominal Case Sizes
  63, 100, 160 (mm) (2½”, 4″, 6″)
• Case Configuration
  – Connection temperature sensor (stem):  rigid mount with neck tube
  – Stem postion:  vertical bottom position,
  optional: centre back position  (rm):
  for stem B1 and B4.1 without neck tube, see page 2
• Mounting device:  without,
  optional:  for centre back connection (rm),
  back flange for surface mounting (Rh)
• Temperature Ranges
  (EN 13 190) Spans from 60 K to 600 K
• Temperature Sensor (Stem)
  1.4571 (316 stainless steel),
  max. static operating pressure: 25 bar
  – Stem models: B1, B3, B4, B4.1, B5 or B6
  – Stem- Ø dF:   6 or 8 mm
  – Stem length L: Lmin resp. L1min up to 400 mm
  Please regard the minimum stem length depending on the active length (La) and stem model
• Window
  Instrument glass
• Dial
  Aluminum, black figures, white background
• Pointer
  Adjustable pointer aluminum, black
• Indication Adjustment (± 4%)
  Bottom stem position: by adjustable pointer
  Center back stem position: externally by a screw
