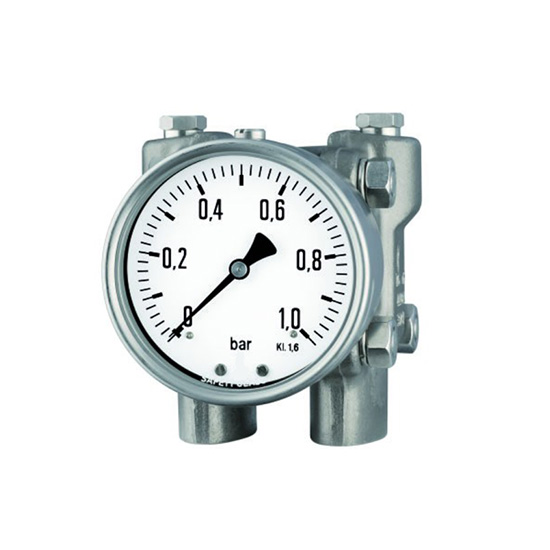

Differential Pressure Gauges: Model DiP1Ch/DiP1ChG

ITI Instruments to Industry

Bayonet Ring Case Stainless SteelStandard (DiP1Ch) or Liquid Filled (DiP1ChG)

Application:

The  differential  pressure  gauges  models  DiP1Ch  and  DiP1ChG are used for direct indication of low differential pressure from 0-40 mbar and above at static pressure of 40 bar (600 psi) or optionally 100 bar (1500 psi).

They may be used for measuring fluid or gaseous media, which are compatible with stainless steel 316 Ti, 316 L and Viton. The measuring chambers are flushable, therefore they are insensitive to  the  accumulation  of  solid  particles.  2x  flush  and  ventilation connections 1/8″ BSP female are standard supply.

Different electrical accessories can be installed, such as limit-switch contact assemblies and capacitive electrical transformers.

pdf

Differential Pressure Gauges Model: DiP1Ch/DiP1ChG

General Features

  • Nominal Case Sizes (NCS)
    100 (4″) , 160 (6″)
  • Accuracy Class (EN 837-3)
    1.6
  • Pressure Ranges (EN 837-3)
    NCS 100 (4″): 0-0,6 bar (0-10 psi) to 0-25 bar (0-400 psi)
    NCS 160 (6″): 0-40 mbar (0-16 “WC) to0-25 bar (0-400 psi)
    also the corresponding standard vacuum and compound ranges ≥ -40/+60 mbar
  • Pressure Limitations
    Max. static pressure PN 40 (600 psi);
    one-sided overrange protected up to permissible PN;
    vacuum protected
  • Temperature Limitations
    Ambient temperature  -20 °C up to +80 °C (-4 °F up to +176 °F)
    Medium temperature  max. +100 °C (+212 °F)
  • Reference Temperature
    + 20 °C (+68 °F)
  • Temperature Caused Error
    Approx. 0.3%/10 K (18 °F)
  • Protection Type  (EN 60529 / IEC 529)
    Model DiP1Ch = IP 54   /  model DiP1ChG = IP 65
