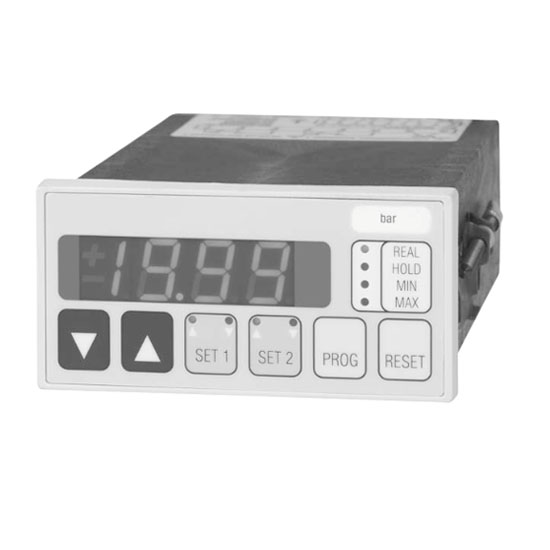

Digital Indicator for Panel Mounting Model DA1332
Description
The digital indicator DA1332 has been specially designed to display values measured by electronic transmitters, such as pressure transmitters or temperature transmitters. The rear of the instrument features detachable screw terminals for the input signals 0 (4) … 20 mA and 0 … 10 Volt as well as for the analogue outputs 0 (4) … 20 mA and 0 … 10 Volt.
The indicator can be programmed via splash water protected keys at the front side of the instrument. Clear and simple messages on the LED display guide the user through all configurable parameters, step-by-step.
Digital Indicator for Panel Mounting Model DA1332
Applications
- Process and plant engineering
- Machine tools
- Test benches
- Level measurement
- General industrial applications
Special Features
- Indication range -1999 … +1999
- Input signals 4 … 20 mA, 0 … 20 mA, 0 … 10 V selectable
- Output signals 4 … 20 mA, 0 … 20 mA, 0 … 10 V selectable
- Integrated power supply DC 24 V for transmitter
- Hold function, MIN and MAX memory
