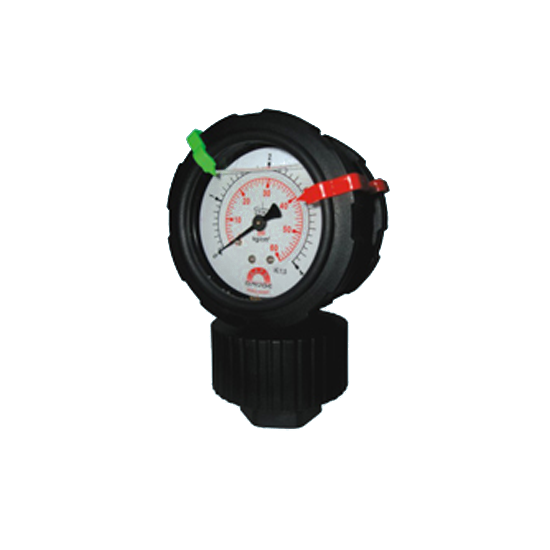

Double-Side-PP-Diaphragm-Pressure-Gauge-GR-AC

Double-Side-PP-Diaphragm-Pressure-Gauge-GR-AC

Diameter  :  2.5”,4”
Pressure Range  :  5psi ~ 700psi
0.35kg/cm2  ~ 50kg/cm2
Casing & Bezel  :  SUS 304 or EPDM Surface, anti-shock PP, PVDF
Connection  :  1/8″,1/4″,3/8″,1/2″,PT,NPT,BSPT,PF
Filling  :  99.5% Glycerin or 1000# silicone oil
Diaphragm  :  PP or TEFLON or PVDF
Capsule  :  VITON or TEFLON
Accuracy  :  +/- 1.5% F.S.D
Temperature Range  :  – 10℃ to +85℃ (PP)

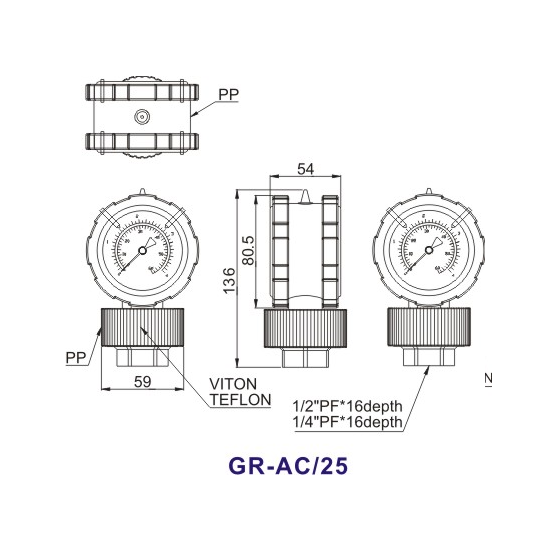

Double-Side-PP-Diaphragm-Pressure-Gauge-GR-AC25
