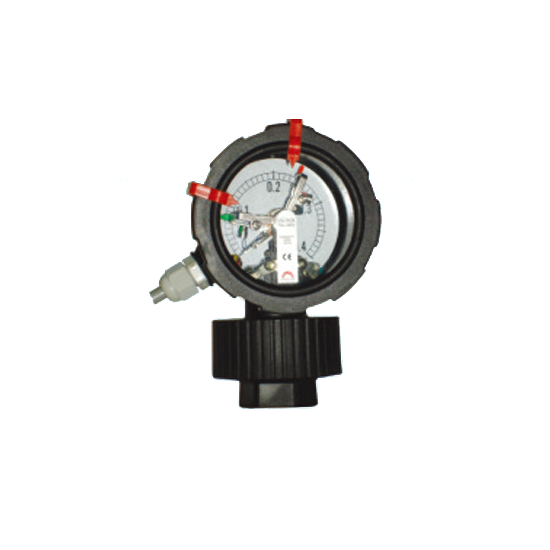

Liquid Filled PP Diaphragm Pressure Gauge : Model GJ-C

Liquid Filled PP Diaphragm Pressure Gauge : Model GJ-C

Diameter : 2”, 2.5”, 3”,4”
Pressure Range : 5psi ~ 700psi
0.35kg/cm2  ~ 50kg/cm2
Casing & Bezel : SUS 304 or EPDM Surface, anti-shock PP, PVDF
Connection : 1/4 PT, ½ PT MOUNT or OTHER PANEL MOUNT
Filling : 99.5% Glycerin or 1000# silicone oil
Diaphragm : PP or TEFLON or PVDF
Capsule : VITON or TEFLON
Accuracy : +/- 1.5% F.S.D
Temperature Range : – 10℃ to +85℃ (PP)

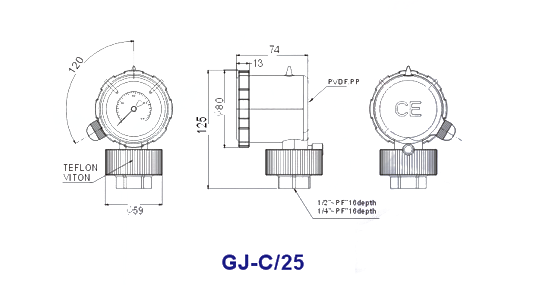

Liquid Filled PP Diaphragm Pressure Gauge GJ-C1
