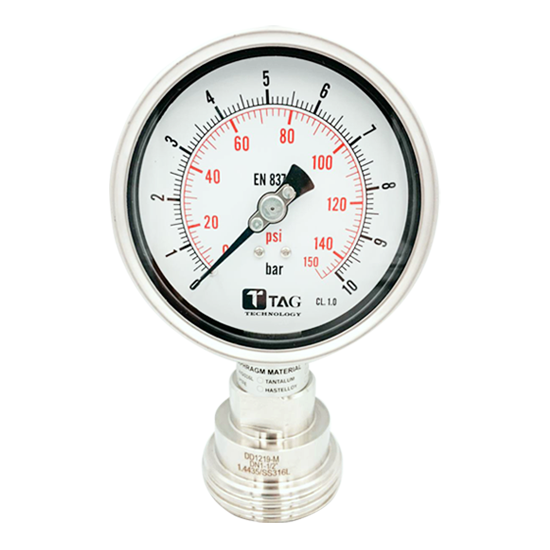

DS3 SERIES Sanitary Diaphragm Seal – Union Nut or Male ThreadeD

TAG Technology

over view :

  • Sanitary union nut diaphragm seal or male
  • Standard DIN 11851, SMS 1145.. etc
  • Wide range hygienic process application
  • Double laser welding SS316L diaphragm
  • Sterilization and Cleaning in place
  • Non-toxic diaphragm filling
  • Process temp. -10℃..+130℃ depend on filling
  • Accessories capillary, cooling tower.. etc :
  • Pressure range -1..0, 0..1 up to 40 bar
  • Conn. size DIN DN25..DN80, SMS 1 1/2″..2″
  • Wetted parts SS316 standard

DS3 SERIES
Sanitary Diaphragm Seal – Union Nut or Male ThreadeD

over view :

  • Sanitary union nut diaphragm seal or male
  • Standard DIN 11851, SMS 1145.. etc
  • Wide range hygienic process application
  • Double laser welding SS316L diaphragm
  • Sterilization and Cleaning in place
  • Non-toxic diaphragm filling
  • Process temp. -10℃..+130℃ depend on filling
  • Accessories capillary, cooling tower.. etc :
  • Pressure range -1..0, 0..1 up to 40 bar
  • Conn. size DIN DN25..DN80, SMS 1 1/2″..2″
  • Wetted parts SS316 standard
