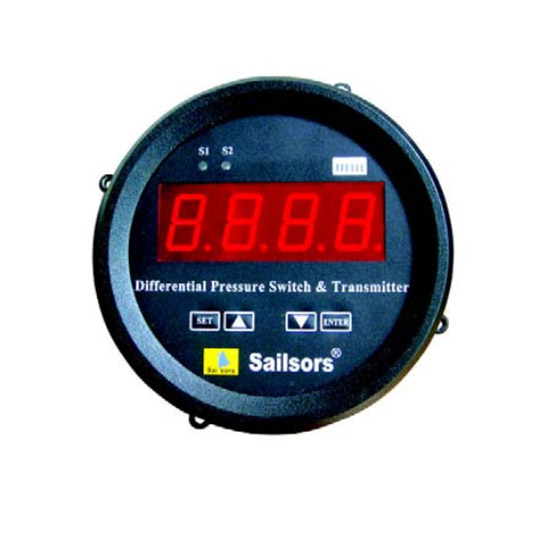

A3 Ultra-thin Digital DP Swithch.Gauge/Transmitter

Sailsors

Features

  • Excellent for differential, negative,gauge, and absolute pressure measurement
  • Ranges from 60Pa to 42MPa
  • Combining the functions of switch, gauge and transmitter
  • Accuracy of 0.5% FS, without dead band
  • Ranges can be reset in the field through the reset buttons

Specifications

  • Media Compatibility:Differential pressure: Air and non-corrosive gases
    Gauge pressure/ Absolute pressure: non-corrosive gases / liquid
  • Accuracy: 0.5% of full span (including Linearity, Hysteresis and Repeatability)
  • Output Signal: 4-20mA, 2-wire
  • Power Supply: 120ADC, 220ADC; 50/60Hz
  • Electrical Rating of Switch: 10A@120VAC,6A@240VAC, 60Hz
  • Electrical Connections: Screw terminals
  • Process Connections: Differential Pressure: Barbed connections Gauge pressure/ Absolute pressure: M20×1.5
  • Material: ABS housing; Brass or 316SS process connections
  • Damping: 1-30s adjustable
  • Operating temperature: -10~50°C
  • Range Turn Down: 3:1
  • Set Point Adjustment: Reset buttons on face
  • Size: 4” (101.60mm) dial face

Models & Ranges

SNAG-0599
