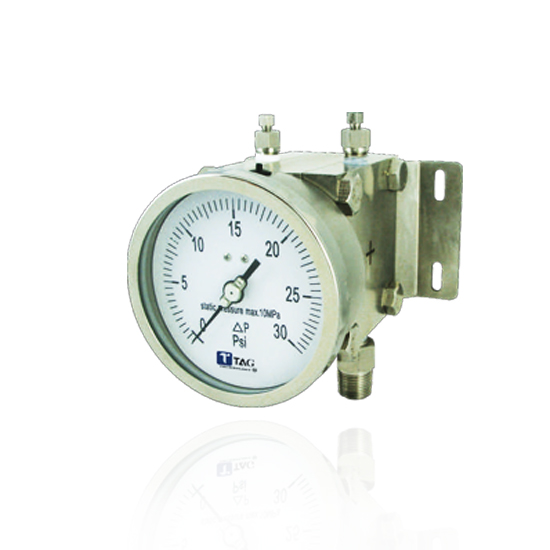

DSH1 SERIES High Static Differential Pressure Gauge

DSH1 SERIES
High Static Differential Pressure Gauge

over view :

• High static pressure differential pressure gauge
• Applicable for corrosive environment
• Static pressure up to 100 bar, *200 bar
• Accuracy class 2.5, *Class 1.6
• Dial size 100 and 150 mm
• Pressure range 0..25 mbar to 0..25 bar
• Bottom, wall and pipe clamp mounting
• Index protection IP65
• Ambient temp. -20℃+60℃
• Design material :
  Casing – Stainless steel
  Wetted parts – Stainless steel
  Window – Safety laminated glass
